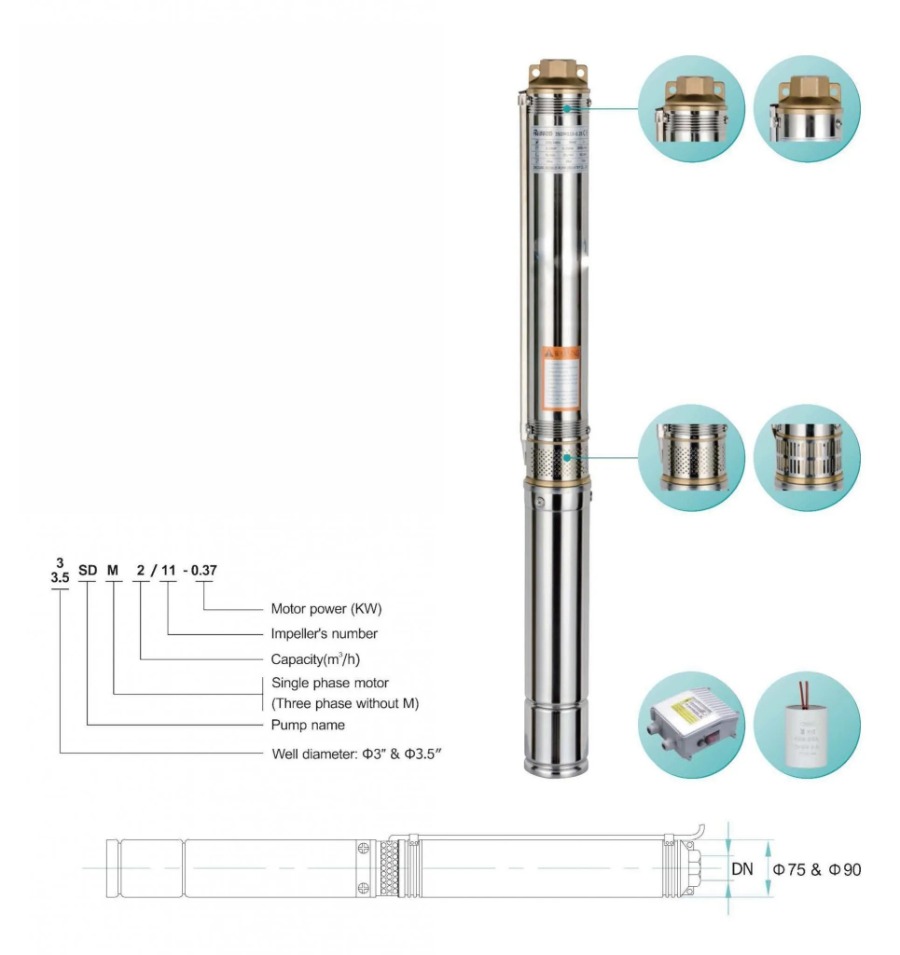

SDM Deepwell Submersible Pump

Feature

Motors are designed with quality materials and unique features to assure years of dependable operation. NEMA Standard flange connector. The oil-filled motor keeps windings cool, and permanently lubricated bearings to provide reliable pump service. Watertight double-insulated cable entry system prevents capillary action and protects against moisture. A rubber diaphragm is provided to guard against pressure and volume variations due to the thermal expansion of oil inside the motor.

Inquiry Now Pdf

PREV：No previous article NEXT：No next article

Specifications & Applications
Product Drawings
Technical Parameters
Get A Quote

Application

Deepwell Submersible

Core Parts

ABOUT US

Taizhou Yousi Pump Co., Ltd.

We are a custom SDM Deepwell Submersible Pump and SDM Deepwell Submersible Pump exporter enterprise integrating development, production, and marketing. Founded in 1995, since its establishment, it has only focused on one thing - pump manufacturing. The geographical location is Dayangcheng Industrial Zone, Daxi Town, Wenling City, Zhejiang Province, China. We have been adhering to the business philosophy of "people-oriented, winning the market with quality", and wholeheartedly provide customers with high-tech, high-quality, humanized products and services.

Certificate of Honor

Extreme Environments: How Heavy Duty Submersible Slurry Pumps Handle the Toughest Jobs Dec 20, 2024
High Quality Heavy Duty Submersible Slurry Pump With Agitator for Sale Heavy-duty submersible slurry pumps are built to withstand some of the harshest conditions in industrial environments. These robust machines play a pivotal rol...
Read More +
How Dewatering Pumps Keep Mining Operations Running Smoothly Dec 13, 2024
China Dewatering Pump Submersible Slurry Pump for Sale In mining operations, maintaining a dry and safe working environment is critical for ensuring both the efficiency and safety of the entire site. Dewatering pumps, especially s...
Read More +
The Role of Submersible Dewatering Pumps in Industrial Wastewater Treatment Dec 06, 2024
In industrial settings, managing wastewater effectively is crucial to maintaining both environmental standards and operational efficiency. One of the vital tools in wastewater management is the Submersible Dewatering Pump. This pu...
Read More +
How Submersible Dewatering Pumps Can Keep Your Basement Dry and Flood-Free Nov 29, 2024
Basement flooding is a common problem, especially during heavy rain or spring thaws. For homeowners and property managers, having a reliable solution is essential to prevent water damage and costly repairs. Submersible dewatering ...
Read More +
Submersible Drainage Pump Heroes: An Underground Adventure Nov 22, 2024
Deep beneath the surface, submersible drainage pumps and dewatering sewage pumps embark on vital underground “adventures,” working tirelessly to manage water and sewage in challenging conditions. In a world, these pumps navigate d...
Read More +

Model	Q.max	Capacity arrange	Total head arrange
3SD1	2.8	0.6~2.1	190~14
3SD2	3.1	0.6~2.4	179~15
3SD3	5.2	1.2~4.2	108~10
3.5SD2	4.5	0.6~3	142~20
3.5SD3	6	1.2~4.2	118~15
3.5SD4	7	1.2~5.4	103~10

Continuous service
Power	0.18~1.5KW(Single phase)
Power	0.18~1.5KW(Three phase)
Insulation class	B
Protection grade	IP 68
Minimum well diameter	Φ3" &Φ3.5"
Highest temperature of liquid	40 C

Model		P2		DELIVERY n≈2850 1/min
Model		P2		Q	m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4
1`220V-240V	3~380-415V	KW	HP	Q	l/min	0	5	10	15	20	25	30	35	40
3SDM1/8	3SD1/8	0.18	0.25	H(m)		33	32	30	29	26	23	19	14	9
3SDM1/10	3SD1/10	0.25	0.33			41	40	38	36	33	29	23	18	12
3SDM1/15	3SD1/15	0.37	0.5			62	59	57	54	49	43	35	27	18
3SDM1/22	3SD1/22	0.55	0.75			90	87	84	80	73	63	51	39	26
3SDM1/30	3SD1/30	0.75	1			123	119	114	109	99	86	70	54	35
3SDM1/40	3SD1/40	1.1	1.5			164	158	152	145	132	114	94	71	47
3SDM1/50	3SD1/50	1.5	2			205	198	190	181	165	143	117	89	59

Model		P2		DELIVERY n≈2850 1/min
Model		P2		Q	m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
1`220V-240V	3~380-415V	KW	HP	Q	l/min	0	5	10	15	20	25	30	35	40	45
3SDM2/6	3SD2/6	0.18	0.25	H(m)		26	26	25	24	23	21	19	16	11	7
3SDM2/8	3SD2/8	0.25	0.33			35	34	33	32	31	29	25	21	15	10
3SDM2/11	3SD2/11	0.37	0.5			48	47	46	45	43	39	35	29	21	14
3SDM2/17	3SD2/17	0.55	0.75			74	72	72	69	66	61	54	44	32	21
3SDM2/24	3SD2/24	0.75	1			104	102	102	97	93	86	76	63	46	30
3SDM2/33	3SD2/33	1.1	1.5			144	140	140	134	128	114	104	86	63	41
3SDM2/40	3SD2/40	1.5	2			174	170	170	162	155	143	127	104	76	49
